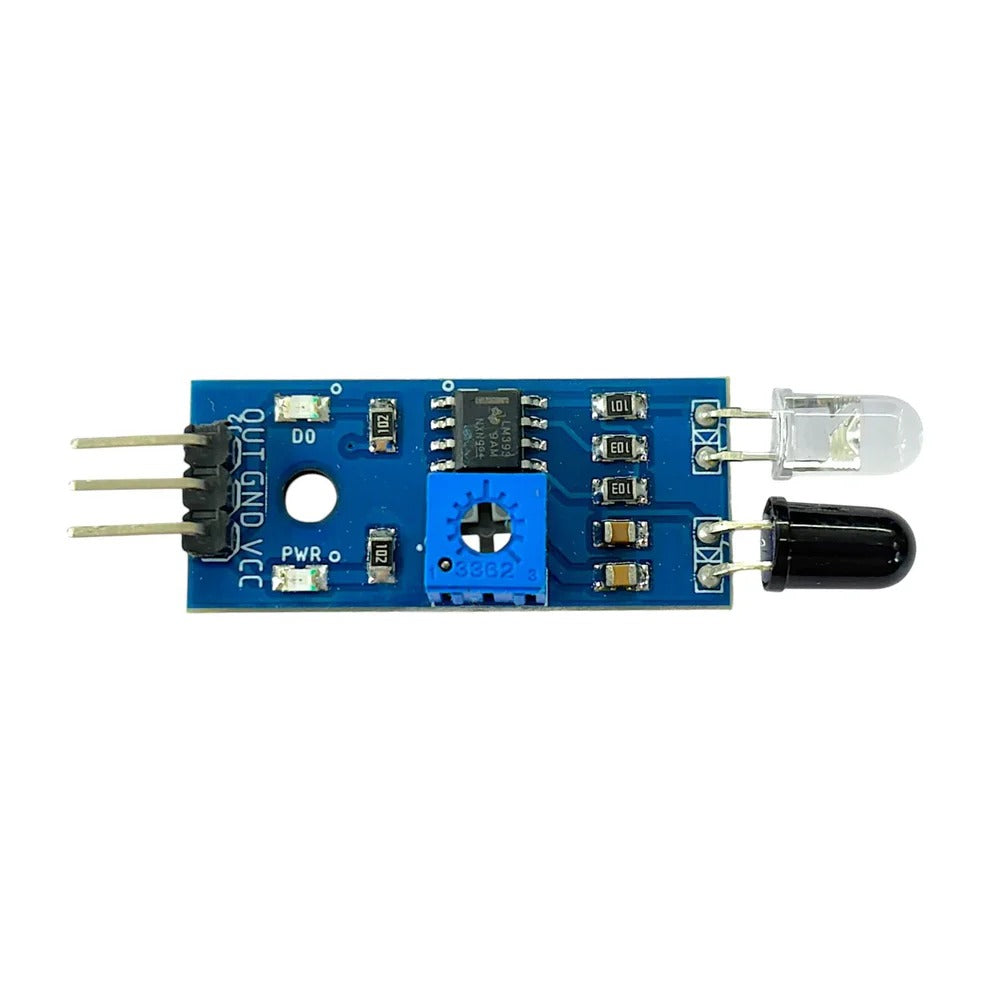

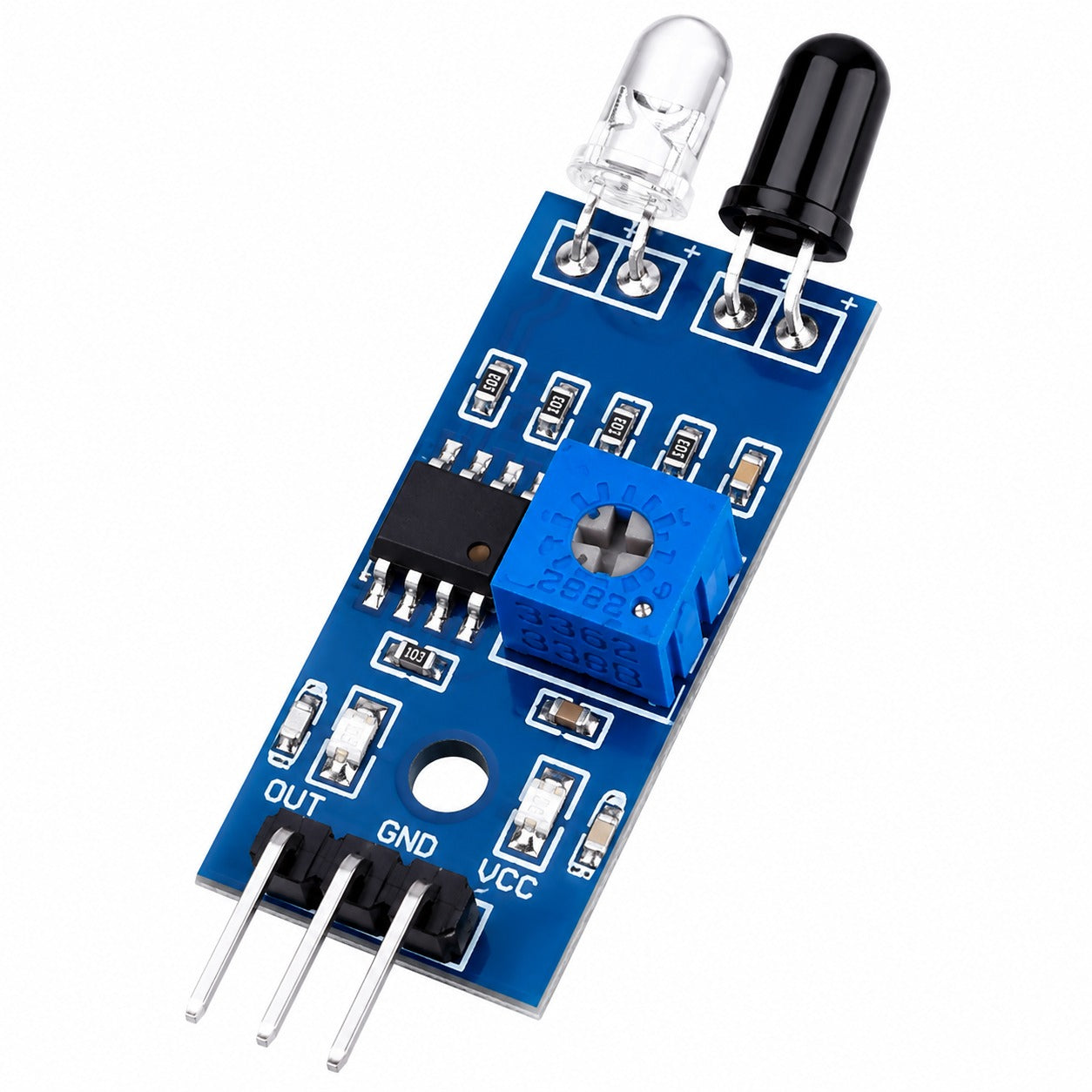

IR Obstacle Avoidance Sensor Module for Arduino, ESP32 & Robotics
IR Obstacle Avoidance Sensor Module for Arduino, ESP32 & Robotics
Couldn't load pickup availability
The IR Obstacle Avoidance Sensor Module uses infrared technology to detect nearby objects without physical contact. It is widely used in obstacle avoiding robots, smart vehicles, automation systems, and Arduino-based robotics projects.
Technical Specifications
| Specification | Details |
|---|---|
| Sensor Type | Infrared Obstacle Sensor |
| Operating Voltage | 3.3V–5V DC |
| Output Type | Digital |
| Detection Distance | Approximately 2–30 cm (adjustable) |
| Detection Method | Infrared Reflection |
| Comparator IC | LM393 |
| Adjustable Sensitivity | Yes |
| Status LED | Yes |
| Mounting Holes | Yes |
Share
Key Features
Key Features
Infrared Object Detection
Adjustable Detection Distance
Fast Response Time
Digital Output
Built-in Comparator Circuit
Adjustable Sensitivity
Onboard Status LED
Easy Arduino Interface
Compact Design
Beginner Friendly
Applications
Applications
Obstacle Avoiding Robot
Line Follower Robot
Robot Car
Smart Vehicles
Object Detection
Conveyor Automation
Automatic Door System
Smart Dustbin
Industrial Automation
DIY Electronics
Engineering Projects
STEM Learning
School & College Projects
Package Includes
Package Includes
1 × IR Obstacle Avoidance Sensor Module
Compatibility
Compatibility
Frequently Asked Questions
Frequently Asked Questions
Is it compatible with Arduino Uno?
Yes.
Does it work with ESP32?
Yes.
Can the sensing distance be adjusted?
Yes.
The onboard potentiometer allows adjustment of the detection range.
Does it detect transparent objects?
Detection performance depends on the object's material, color, and surface reflectivity. Transparent or highly reflective objects may behave differently.
Can it detect black objects?
Yes, but the sensing distance may be reduced because black surfaces reflect less infrared light.
Is the output analog?
No.
This module provides a digital output.
Can it be used for line follower robots?
It is primarily designed for obstacle detection. Dedicated line tracking sensors generally provide better performance for line follower applications.
Is it suitable for beginners?
Yes.
It is one of the easiest sensors to interface with Arduino.
